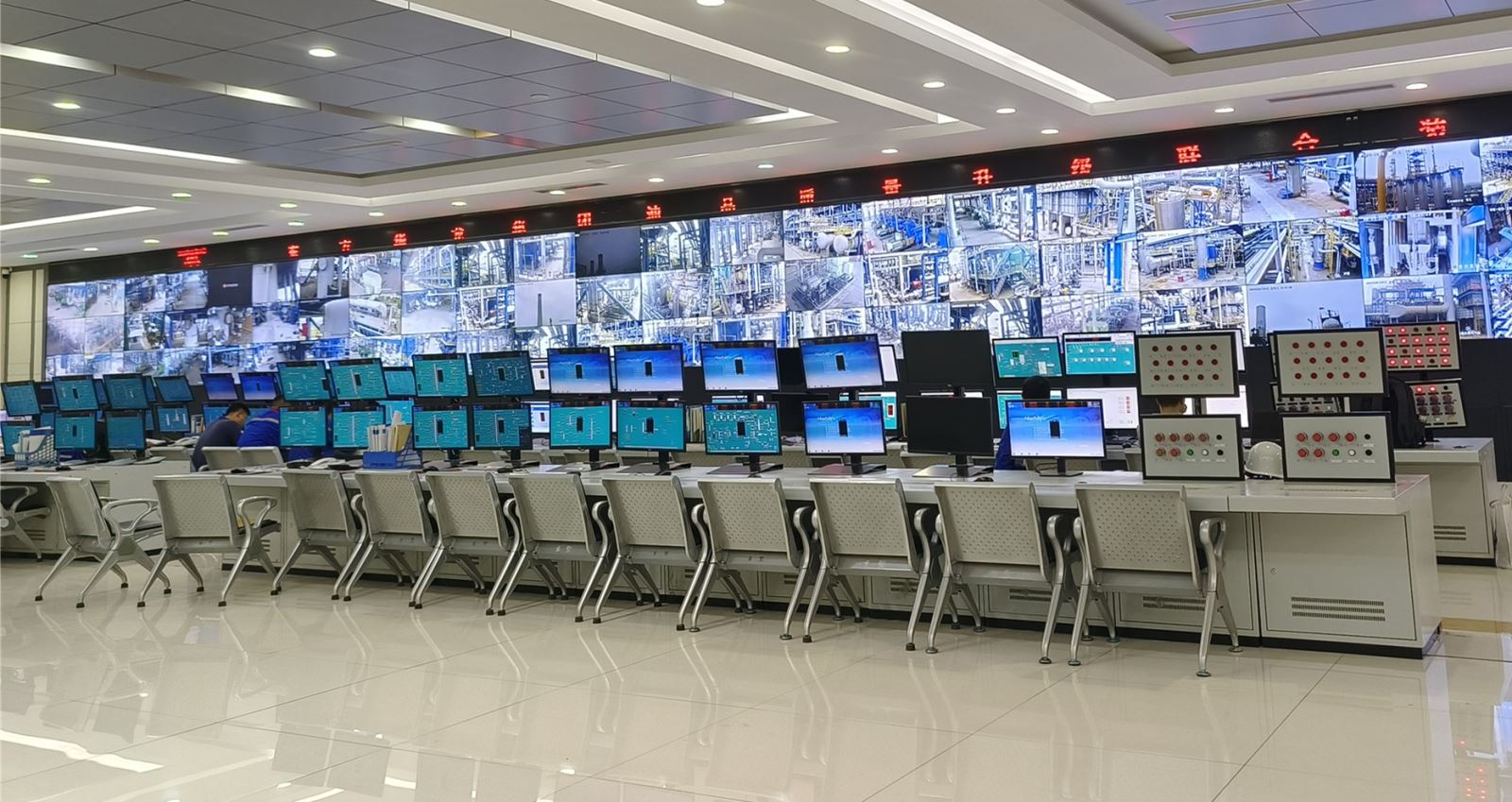

To maximize efficiency and automation, thermal oil boiler control systems are often integrated, or “linkaged,” with the production line they serve. In practical terms, linkage control means the boiler’s operation dynamically responds to the needs of downstream equipment – such as reactors, dryers, or heating units – in real time. Customers are interested in this because it enables automatic load adjustment: the boiler will ramp up or down output based on process demand without manual intervention. Henan Rentai’s control solutions support interlocks and communication with various types of downstream equipment, providing coordinated control across the plant. In this article, Henan Rentai explains how linkage control is implemented, the safety boundaries to consider, and the benefits of this dynamic control approach.
Why Linkage Control?
First, let’s clarify the motivation. In a standalone scenario, the thermal oil boiler maintains a set temperature continuously, and the process equipment (say a drying oven) has its own local controls (like valves or dampers) to modulate heat input. Without linkage, operators might have to manually adjust the boiler setpoint or flow when the process changes (for example, if a new batch starts in a reactor requiring more heat). This can lead to delays or energy waste – the boiler might be at full fire when not needed, or lag behind when sudden demand arises.
With linkage control, the boiler and process “talk” to each other. The production line can send a signal to the boiler control indicating its heat demand. Conversely, the boiler can signal readiness or constraints. The result is a more tightly integrated system where the heat supply automatically matches heat demand. This improves consistency (the process gets the heat exactly when needed) and efficiency (the boiler avoids oversupplying heat).
For example, consider a reactor that needs to maintain 200°C. The reactor’s control system measures its temperature and usually opens or closes a thermal oil control valve to add or reduce heat. In a linkaged setup, instead of solely throttling a valve, the reactor controller could also send a request to the boiler: “I need more heat now” or “I am nearly at setpoint, reduce heat.” The boiler PLC receives this and can increase the oil outlet setpoint or burner firing rate accordingly. Essentially, the reactor’s demand becomes an input to the boiler’s control algorithm.
Communication Methods for Integration
Implementing this requires communication between the boiler control system (PLC) and the production line control system (which could be another PLC, DCS, or simply instruments). Several methods are commonly used:
Analog Signal Integration: A straightforward way is using analog signals (e.g. 4–20 mA or 0–10 V) to represent demand. The downstream equipment might have a temperature controller that outputs a signal proportional to required heating power. The boiler PLC reads this as a remote setpoint or bias. For instance, a reactor’s controller might output 0% when no heating is needed and 100% when maximum heat is needed. The boiler PLC can scale that to adjust its firing rate. Similarly, the boiler could send an analog signal back indicating available capacity or actual supply temperature.
Discrete Interlocks: In simpler cases, just having on/off interlocks is sufficient. For example, if a dryer is not running (its conveyor or fan is off), it might send a permissive to the boiler to go to standby (lower temperature or low fire). When the dryer starts, it signals the boiler to resume normal operation. These are boolean signals that can be wired between control systems. Rentai’s solutions allow multiple downstream devices to be interlocked – meaning the boiler will only run if certain conditions in the users are met (e.g. all consumer valves closed could trigger the boiler to idle).
Digital Communication Networks: A more advanced method is using a digital protocol (Modbus, ProfiNet, Ethernet/IP, etc.) to link the PLCs. This allows exchanging multiple data points. For example, the production line PLC could send the exact temperature setpoint it currently needs or the current process temperature. The boiler PLC could send back the actual oil temperature or an alarm status. With digital links, integration is very rich and flexible. Rentai indicates support for Ethernet networks and IoT connectivity, implying that their boiler PLCs can be tied into plant networks or cloud systems to facilitate this data exchange.
Shared Control System: In some cases, the boiler and the process unit might be managed by the same centralized control (like a plant DCS). In that scenario, “linkage” is achieved in software: the DCS coordinates both sides. For example, it might have a master PID loop controlling reactor temperature, which manipulates both the reactor’s control valve and biases the boiler firing rate. This is a highly integrated approach usually seen in bigger installations.
Rentai’s typical approach for smaller systems is likely the analog or digital communication between a boiler PLC and equipment controllers. They have mentioned support for linking with multiple types of equipment, which suggests they design their control panels with extra I/O or communication modules to interface with the user’s systems.
Coordinated Control Strategy
When linking a boiler with a production line, a coordinated control strategy is developed. One common strategy is a cascade control loop across systems:
The downstream process (e.g. an industrial dryer) has a primary control loop measuring its key variable (drying air temperature, product temperature, etc.). This primary loop outputs a “heat demand” signal.
The boiler’s oil temperature control loop becomes a secondary (slave) loop that takes that demand into account. In practice, the boiler might adjust its oil outlet temperature setpoint based on demand. For instance, if demand is low, setpoint might be lowered slightly to save energy; if demand is high, setpoint might be raised or the burner output directly biased upward.
Another approach is flow control integration: Suppose multiple users share one thermal oil boiler. The system might modulate flow to each user with control valves. A master controller could open valves as needed and simultaneously signal the boiler to increase output when more valves are open. This requires a supervisory logic that knows the status of all user circuits and ensures the boiler’s total output meets the sum of demands.
An example from practice: In a chemical plant, two reactors are heated by one oil heater. Each reactor has a temperature controller that manipulates a flow control valve on its oil supply. A supervisory PLC program monitors both reactors’ heating requirements. If both reactors call for heat at the same time, it raises the boiler firing rate to maximum and perhaps increases pump speed to boost flow. If only one reactor is calling for heat, it lowers the boiler firing (maybe one burner stage instead of two, or modulates fuel) to avoid oversupplying heat. The PLC might also decide which reactor is a priority if the boiler capacity is limited – perhaps by temporarily throttling one if needed. This ensures the load is dynamically balanced among consumers.
Rentai mentions support for interlocks with multiple downstream equipment types, which suggests they incorporate such supervisory logic. It might be as simple as summing analog demand signals or as advanced as a mini-DCS logic in the boiler PLC.
Ensuring Safety and Boundaries
When implementing linkage control, it is crucial to define safety boundaries so that no matter what the process demands, the boiler operates within safe limits. The boiler control must ultimately have authority to say “no” if a demand would push it into unsafe territory. Some considerations:
Max/Min Setpoints: The boiler will have a maximum oil temperature setpoint it should not exceed (for oil stability reasons). If a downstream system mistakenly or due to sensor error demanded too high a temperature, the boiler PLC should cap it. Similarly, minimum flow must be maintained; if all processes shut off flow, the boiler should detect that and go to low fire or shut off, even if a stray signal is calling for heat.
Priority to Boiler Safeties: Safety interlocks (like over-temperature) always override any external demand. For instance, if a process keeps calling for more heat but the boiler hits a high-temperature limit, the boiler’s safety will engage and ignore further increase commands. Integration should never bypass internal safeties.
Controlled Ramps: When a process demand suddenly goes from 0 to 100%, the boiler shouldn’t just instantly go to full fire in one step (to avoid thermal stress). The PLC can implement ramp rates on how fast it will increase firing rate or setpoint in response to demand changes. This smoothens the response.
Feedback to Process: It’s often wise for the boiler to inform the process if it cannot meet the demand fully. For example, if multiple processes demand more heat than the boiler’s capacity, the boiler control can send a signal back (or an alarm) indicating “Heat demand exceeds capacity.” Processes might then go into a waiting state or the plant DCS might stagger the loads. Rentai’s integration approach likely includes such feedback or at least visible status so operators know if the boiler is at limit.
An example safety scenario: Imagine a downstream valve fails open causing a huge flow demand, oil temperature starts dropping quickly. The boiler will fire to compensate, but perhaps it can’t keep up. Instead of letting the whole system spiral down, the boiler PLC could issue an alarm “excessive flow” or even close a safety shut-off valve to isolate that branch, depending on design. These decisions would be programmed during integration design.
Real-World Implementation Steps
Implementing linkage control typically follows these steps:
Signal Mapping: Determine what signals will be exchanged. For each piece of equipment on the production line that needs to link with the boiler, identify a heat demand signal (this could be a setpoint, a percentage, or simply run/stop status) and feedback signals (like oil flow available, temperature available). For example, a drying oven might provide a 4–20 mA signal for “required oil temperature” based on its own PID. The boiler PLC will accept that as a remote setpoint.
PLC Programming: The boiler PLC program is modified to accept external inputs. It might have a selector to enable remote setpoint mode. When enabled, the boiler’s own setpoint comes from the process signal. If multiple signals, perhaps the highest demand governs or an average – whatever strategy is chosen. The program will also send outputs – e.g., if the boiler goes into alarm or cannot meet setpoint, set a digital output or flag that the process PLC can read.
Wiring/Communication Setup: Physical wiring of analog and digital signals or configuring network communication. This involves coordination between the boiler supplier and the process control engineers. Protocols and addresses must be agreed upon. Rentai’s systems support common interfaces, which makes this easier to integrate with third-party equipment.
Testing Interlocks: It’s tested that under various scenarios, the interlocks behave correctly. For instance, simulate a sudden stop of the process – the boiler should detect it (perhaps via a closed valve feedback or a “stop” signal) and safely reduce firing. Simulate maximum demand – ensure boiler goes to full output but no further, and sends “at capacity” signal if possible.
Operator Interface: The HMI should reflect the linkage status. For example, it might show “Remote setpoint active – setpoint = 240°C from Reactor 1.” It might allow enabling/disabling remote control in case manual override is needed (with proper safety conditions). Operators need to know if the boiler is being controlled externally or locally. Rentai likely provides modes for manual, local automatic, or remote automatic control, switchable on the HMI.
Fail-safe Design: Decide what happens if communication fails. If the connection between process and boiler is lost (broken wire or network issue), the boiler control should have a fallback. Often, the boiler will revert to a safe mode – either hold last setpoint or go to a default. A common choice is to fail as if no demand – i.e., assume 0% demand and go to idle, while raising an alarm, so that it doesn’t continue full fire without knowing the real need. This needs to be programmed.
Example: Chemical Reactor Linkage
Consider a successful application in a chemical plant (a likely scenario that Rentai might have handled). A reactor has an exothermic reaction that sometimes needs cooling and sometimes heating. The plant uses a single thermal oil system for both heating (via an oil heater) and cooling (via a cooler) in the reactor jacket loop. The control is complex because the reactor jacket temperature must be maintained. They implement linkage such that the reactor’s control system directly communicates with the oil heater’s PLC. When the reactor needs heating, it sends a signal to the heater to provide, say, 70% of max heat. The oil heater ramps up to that. If the reactor suddenly needs cooling (no heat needed), it signals 0% demand; the heater PLC then drives the burner to low fire or shuts it off and maybe circulates oil through a cooler if integrated.
During this, safety interlocks ensure the oil temperature doesn’t overshoot safe limits for the fluid, and if the reactor controller were to malfunction and call for an absurd temperature, the heater PLC would clamp it. The dynamic interplay ensures the reactor sees a stable temperature – the moment it starts cooling below setpoint, it has already told the heater to be at high fire, minimizing lag.
In fact, integration of a thermal oil boiler with a reactor is a known key application: “reactor and blending vessels with and without differential temperature control are a key application” for thermal fluid systems. Differential temperature control means controlling jacket inlet vs outlet temperature to manage heat transfer rate. The boiler’s control might take part in that by adjusting supply temperature according to the differential needed.
Multi-Equipment Integration
If multiple different types of equipment are served (as listed: reactors, dryers, heating tanks, etc.), the boiler control often operates under a master demand system. One way is to use a highest demand selector: the boiler adjusts to satisfy the most demanding consumer. This ensures that if one process needs a high temperature, the boiler will run at that temperature (so that process is satisfied), and other processes that need less can throttle with their own valves. Alternatively, if processes operate at different temperature levels, sometimes a secondary loop with mixing might be used – but that goes beyond direct control integration (more of a system design).
Rentai’s mention of multiple equipment suggests their control can accept several analog inputs or a fieldbus with multiple nodes. They likely implement a scheme to handle this. For example, if one user needs 300°C and another only 250°C, the boiler might run at 300°C and rely on the second user’s control valve to mix or bypass to get 250°C. The integration then is partly mechanical (valves) and partly control (signals when one process is not in use to possibly lower overall setpoint).
Benefits of Linkage Control
By implementing linkage control, the system achieves dynamic, demand-driven operation. This has several benefits:
Energy Efficiency: The boiler only works as hard as needed. If all processes are satisfied and stop calling for heat, the boiler can go to standby, avoiding overheating the oil or wasting fuel. Conversely, it can efficiently distribute heat when demand is high. This prevents scenarios of heat oversupply (which would then be wasted through cooling or losses).
Process Quality: Processes maintain their target temperatures more precisely because the heat source is responsive. This can improve product quality – for instance, a more consistent curing temperature in a rubber vulcanization process yields better product uniformity. A case in point: a thermal oil system used in rubber shoe production maintained precise vulcanization temperature with automatic control, ensuring product quality.
Reduced Operator Workload: Operators do not need to manually intervene or adjust boiler settings for different production conditions. They can focus on the process, and trust that the boiler control will follow along. It essentially creates an auto-pilot for the heating system.
Coordinated Safety: Integrated systems can also coordinate for safety shutdowns. If the boiler trips, it can signal all connected processes to stop or go to safe mode (since no heat is being supplied). Similarly, if a process unit goes into an emergency shutdown, it can signal the boiler to shut off heat supply. This mutual awareness prevents situations like a pump circulating oil to a shut-down process unit unnecessarily, or a process running without heat unknowingly.
Linkage Control in Rentai’s Systems
Henan Rentai has practical experience implementing such integrations. In their blog or case studies (though mostly in Chinese), they describe integrating boiler control with downstream equipment. For example, in one chemical industry case, the control cabinets for the boilers included custom integration (including explosion-proof design) for the site’s special requirements. While that case was more about environment, it shows their capability to tailor controls. Additionally, their IoT system overview suggests connecting to an “MES or OA system” at the enterprise level which implies linking operational data upwards. For on-site control, they mention connecting to SCADA and automation systems– this is exactly how linkage happens: the boiler PLC becomes a node in the plant’s overall automation network.
One of the advantages Rentai likely offers is pre-engineered logic for common linkages. For instance, if they know the boiler will serve a drying oven, they might include a standard function block to interface with the oven’s controller. This reduces custom coding and ensures reliability.
In the pharmaceutical integration example from Zozen (another boiler company), they emphasized that “the thermal oil boiler’s control system must be integrated with the existing production line’s automation control system” and that through integration, the production line can do real-time monitoring and regulation of the boiler’s parameters. They also noted this allows automated operation coordinated with the production equipment. This corroborates the importance of linkage control. In that case, after integration, the operators could monitor the boiler from the same interface as their production line and the boiler would adjust to process needs, leading to improved stability and efficiency.
Conclusion
Implementing linkage control between a thermal oil boiler and a production line involves establishing communication and control strategies that let the process demand govern the boiler operation automatically. By doing so, the system becomes more responsive, efficient, and user-friendly. The control system takes on the task of balancing supply and demand in real time, within safe limits, which otherwise would require constant operator attention.
In practical terms, methods like analog demand signals or digital PLC networking are used to connect the systems. The boiler’s PLC is programmed to adjust its setpoints/firing based on these external inputs, achieving fully automatic load adjustment to meet the best working conditions. Extensive testing and clear definition of failure modes ensure that this integration doesn’t compromise safety – the boiler always retains final control to protect itself.
When done correctly, linkage control yields a plant where the thermal oil boiler and the production equipment operate in harmony. For example, a Rentai system in a manufacturing plant might support interlocks with a drying line such that whenever the line speeds up and calls for more heat, the boiler anticipates and supplies it; when the line is idle, the boiler goes to idle mode too. Users have reported that such integrations lead to more stable process temperatures and lower energy costs, as well as easier operation since the need for manual adjustments is eliminated. The dynamic control also reduces thermal shocks and stress, potentially extending equipment life.
In summary, linkage control is achieved by communication + coordinated control logic. It’s an advanced feature of intelligent boiler control systems that Henan Rentai and others provide, turning the thermal oil boiler from a standalone unit into an integral part of the production process control. This synergy ensures that heat is delivered when, where, and only as much as needed, safely and efficiently, fulfilling the promise of automation in modern thermal oil heating systems.
